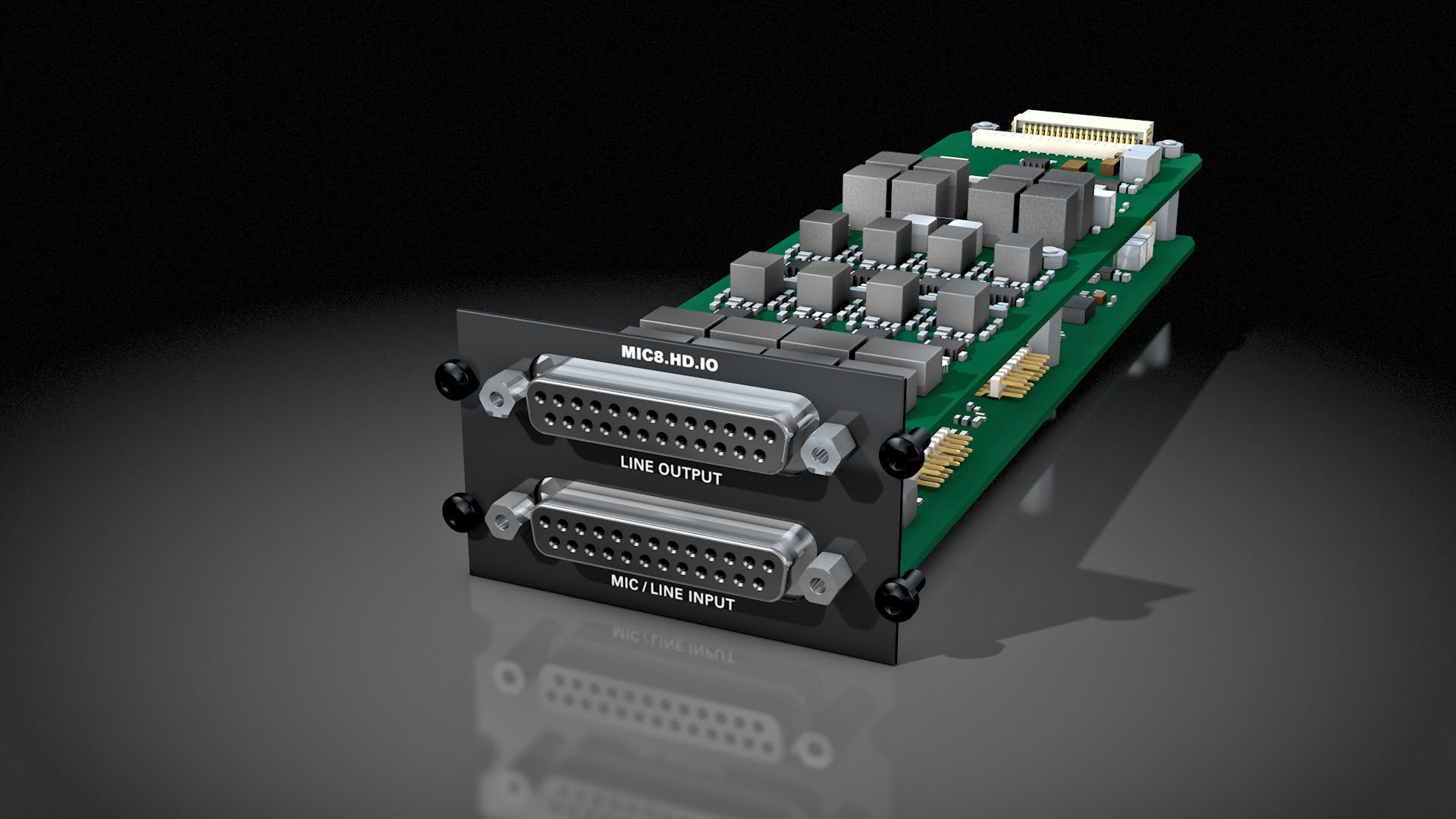

MIC8.HD.IO is a converter module for is a converter module for PRODIGY.MC, PRODIGY.MP und MAVEN.A.

Eight analog audio input and output channels are interfaced via two DSUB-25 connectors.

The inputs are balanced and cover signal ranges from mic to line level.
The outputs are balanced and the reference level can be adjusted to either +15 / +18 or +24 dBU via jumper - individually per channel.

The MIC8.HD.IO suits best for superior quality recordings and broadcasting.
Der MIC8.LINE.IO applies perfect for live sound or installation scenarios where usual high-quality is required.

  • 8 channels mic input (High Definition)/line output

A/D

  • PAD -30 dB, phantom power (+48 V, switchable)
  • Input sensitivity: -56 dBu to +24 dBu
  • EIN: -128 dBu,
  • THD @ -1 dBFS: -113 dB Frequency response: -0.15 dB (10 Hz) / -0.15 dB (20 kHz)

D/A

  • reference levels +15 / +18 / +24 dBu via jumper
  • SNR: -116,8 dB RMS (20 Hz - 20 kHz) / -119,5 dB(A)
  • THD @ -1 dBFS: -109 dB
  • Frequency response: -0,5 dB (10 Hz) / -0,15 dB (20 kHz)



  • 2 x DSUB-25 connector (input/output)*, according to AES59

* suitable cabling to connect with BREAKOUT is available from DirectOut GmbH
