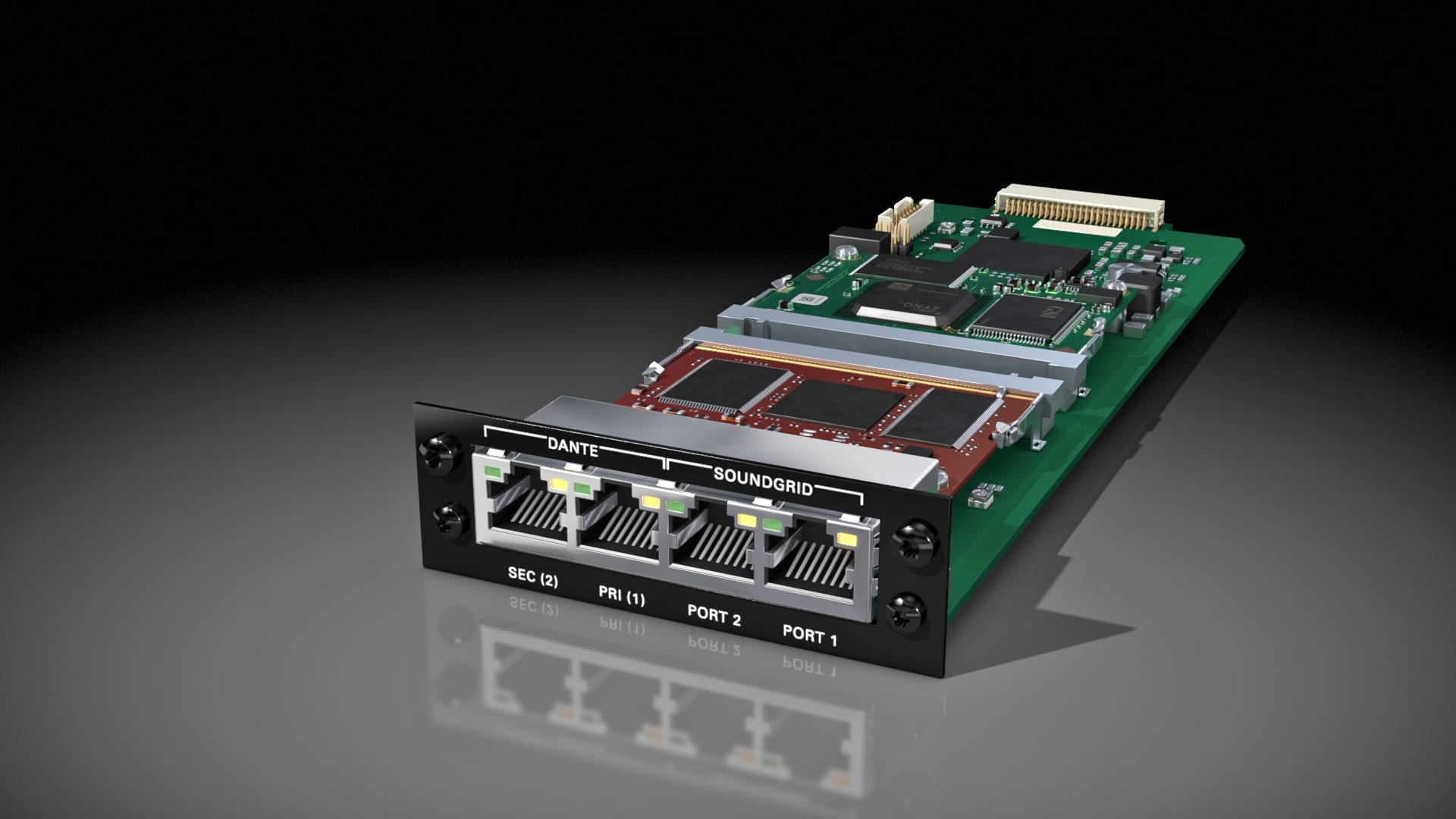

DANTE.SG.SRC.IO is a dual audio network module for the PRODIGY Series and MAVEN.A to interface with 64 channels each of Dante and SoundGrid streams.

One module, two audio engines
Hosting two audio network boards the module offers 2 x 64 of two different audio protocols - Dante and SoundGrid. This allows to interface with two audio protocols in a single A Slot of MAVEN.A or PRODIGY.MC. With the two A Slots of a PRODIGY.MP the coverage can be extended by a third or even fourth audio protocol.

Sample Rate Conversion
Individual HD SRC for bi-directional sample rate conversion is on board as a standard. The PRODIGY and MAVEN Series also offers low latency sample rate conversion (FastSRC) for input and output. The two audio network boards can be operated at different sample rates.

Dual network modules ensure a seamless connection across clock boundaries and different audio protocols on a single module.

Stream Redundancy
There are 2 x 2 independent network interfaces to connect each protocol via a second stream (primary/secondary or Port 1 / Port 2).

The amount of audio channels per protocol is reduced at higher sample rates - 32 channels @ 2 FS or 16 channels @ 4 FS (SoundGrid supports 1 FS and 2 FS only).

Dante is an audio networking technology from Audinate.

SoundGrid is an audio networking technology from Waves that is based on ethernet layer 2.
